MED01 Ultrasonic TM-mode (echocardiography)

]In echocardiography, the time-motion mode (TM-mode), also known as motion mode (M-mode) for short, is used to investigate movement sequences of the heart and its structures. As with a B-Scan representation, the amplitudes of the ultrasonic signal echo of an A-Scan are imaged on the vertical axis in grey or false colour values. The time-staggered echoes that are produced with a high pulse repetition rate are shown next to each other on a horizontal time axis. In this way a graph is produced that reproduces the movement of the examined structure over time. In the experiment, movement is produced by hand using a membrane. This simulates the periodically repeating movement of a cardiac wall or heart valve. A TM-mode image of the simulated cardiac wall movement is recorded using the measurement software. This can be analysed and evaluated as regards the characteristic quantities for the description of heart activity.

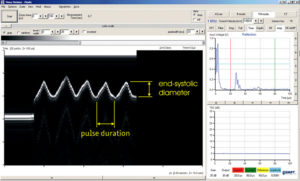

Screen copy of the AScan programme in TM mode

The screen shot of the measurement software in the TM-mode shows, on the left side, the TM-mode recording of a cardiac wall movement simulated with the simple heart model. The pulse duration and the end-systolic ventricular diameter can be determined from this recording. The heart rate and the end-systolic heart volume and the cardiac output can be derived from these two values. In the case of the model, the end-diastolic volume is here assumed to be zero.
