Article No. VK-62507
Holder set for needle hydrophone
Holder for attaching a needle or lipstick hydrophone to the scanner system
Needle and lipstick hydrophones of different sizes and diameters can be fixed with the help of collets and clamping screws. Eight collets (1, 2, 3, 5, 8, 10, 12 and 15 mm) are included in the delivery. The clamping axis of the holder is located in the pivot point of the two rotation scanners. The adjustment enables the exact positioning of the active hydrophone element along the clamping axis in the centre of the two rotation scanners.

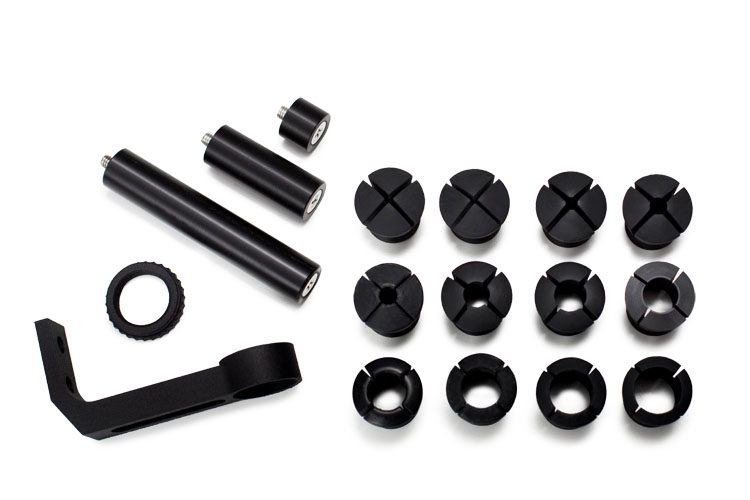

The scope of delivery includes the basic body, the 8 collets (1 – 15 mm) and the spigot set (3 lengths).
The holder can be extended with the linear adjustment 50 mm.
